Enapter 獲得專利的陰離子交換膜(AEM)電解器是一種標準化的，靈活可疊加的系統，可現場產生氫氣。模塊化的設計與高級軟件集成相結合，可在數分鐘內完成設置以及遠程控制和管理，并且可以通過疊加該電解槽以達到所需的氫氣流速。

主要特點

≡高效

≡通過 Enapter 能源管理系統可實現自動高效的遠程操作

≡對水質要求低

≡理想的現場制氫設備

≡模塊易于在 19 英寸的機柜中進行集成

≡操作安全

≡模塊化 可擴展

≡安裝簡單快速

≡維護要求低

≡設計緊湊，占地面積小

參數

產氫率                                                                500 NL/hr

                                                                          1.0785 kg/24 hr

輸出壓強                                                             40 bar

氫氣輸出純度                                                      ~ 99.9%

                                                                          (雜質 : < 1000 ppm H20, < 1 ppm of any N/O/Ar/CO/C02)

干燥后輸出氫氣純度                                            > 99.999%

                                                                          (雜質 : < 1 ppm of any Hp/N/O/Ar/CO/C02)

干燥的氫氣輸出純度                                            2.2 kW

標準條件下的操作功耗                                        15 W

標準電源                                                             AC 200-240 Vac, 50Hz/60Hz

耗水量                                                                0.4 L/hr

進水電導率                                                         < 20 μS/cm (at 25 °C)

進水壓強                                                             1 - 4 bar

環境溫度                                                             5 - 45 °C

環境濕度                                                             20 - 95%, 非冷凝

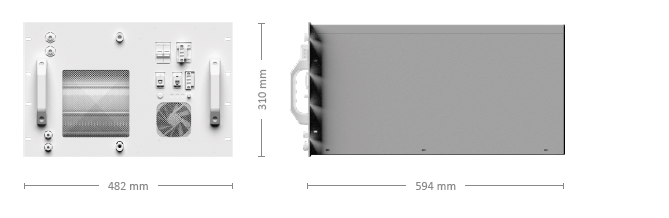

模塊尺寸                                                             W x D x H in mm = 482 x 594 x 310 (7U)

模塊重量(無水)                                                    50 kg

控制和監測                                                         由 Enapter 能源管理系統全自動監控，通訊協議
